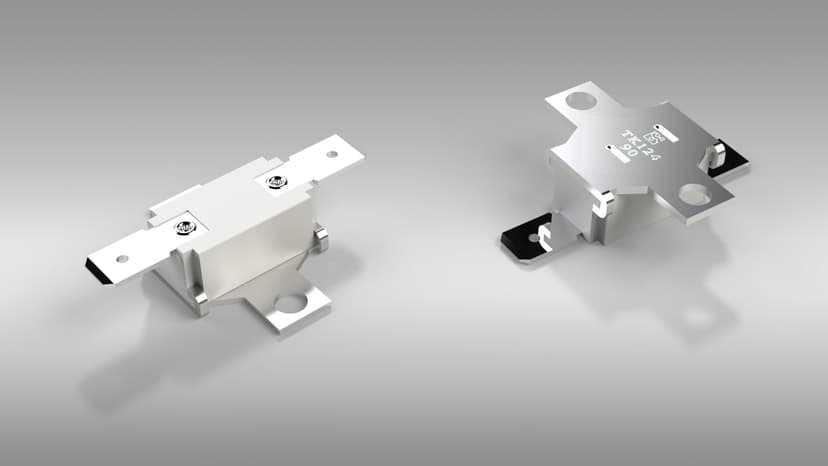

Thermorex TK124

Bimetallic temperature sensitive switch or cyclic operation device with automatic reset control

THERMOREX TK124

Thermostat ТК124 (DIN EN 60730-1) is a temperature sensitive device, with cyclic operation. It is designed to maintain the needed temperature between two predetermined temperature limits, automatically controlling the on-and-off of the electrical circuit.

ApplicationNote
This thermostat is widely used in a broad range of temperature control applications for consumer, industrial and commercial products.Besides its variety of standard configurations the thermostat can also be customized to the specific technical needs of the customer.
Download brochure
Request samplesRequest an offer
ParameterValue
Nominal voltage, V, not more~250
Nominal current, A, at power coeff. 0.95, not more16; 10
Number of automatic cycles, at rated current 16 A and power coeff. 0.95, not less than30000
Number of automatic cycles, at rated current 10 A and power coeff. 0.95, not less than100000
Operating temperature, °C30°C — 190°C
Tolerance of operating temperature, °C±3
Reset temperature, lower than operating temperature, °C, by20 (for response temperature 30-130°C); 35 (for response temperature 131-190°C)
Transient resistance, Ω, not more0.05
Electric strength of insulation, V, not less than1500
Insulation resistance, MΩ, not less than50
Heating speed, K/minminimum-0.1; maximum-1.0
Degrees of protection provided by enclosureIP4X
