Thermorex TK77DC

Home > Electronics > Thermostats

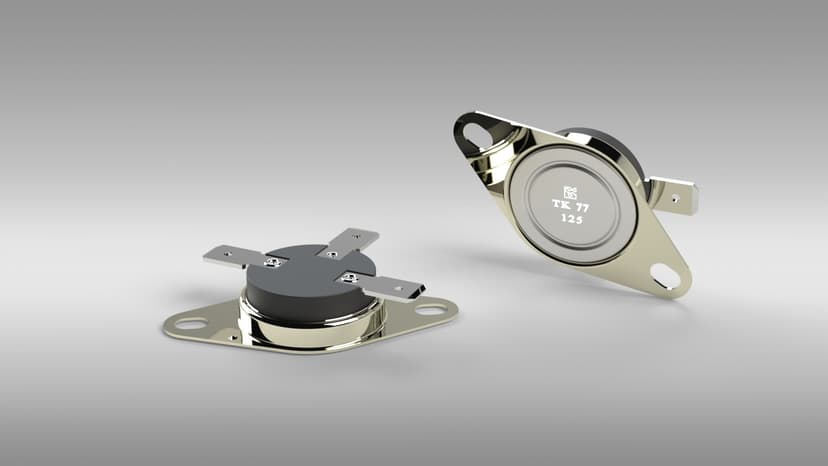

This is a cyclic operating temperature sensitive device, which is intended to control the temperature between two particular values under normal operating conditions, automatically switching off or on the electrical circuit. It is designed to operate in AC and DC circuit applications and has high DC switching capacity. This thermostat can be built to either open or close its electrical contacts as the temperature increases. Once the temperature of the bimetal disc has returned to the specified reset temperature, the contacts will automatically return to their original state. Besides its variety of standard configurations the thermostat can also be customized to the specific technical needs of the customer, assuring maximum design flexibility and usage in broad range of temperature control applications.

Application	Note
This thermostat is widely used in a broad range of temperature control applications for consumer, industrial and commercial products.	Besides its variety of standard configurations the thermostat can also be customized to the specific technical needs of the customer.

TK77-T01-MG01-BP

1 / 2

Download brochure

Request samples Request an offer

Parameter	Value
Rated voltage, VDC, not more	12-60; 120; 150
Rated DC current, A, resistive not more	5; 1.5; 1
Rated voltage, VAC, not more	250; 440
Rated AC current, A, resistive not more	5; 2.5
Number of automatic cycles, for DC not less than	30000
Number of automatic cycles, for AC not less than	100000
Operating temperature, °C	-40°C — 170°C
Tolerance of operating temperature, °C	±3
Reset temperature, lower than operating temperature, °C, by	10±3; 15±5; 20±5
Transient resistance, Ω, not more	0.05
Electric strength of insulation, V, not less than	1500
Insulation resistance, MΩ, not less than	50
Heating speed, K/min	minimum-0.1, maximum-1.0
Degrees of protection provided by enclosure	IP4X; IP65;

Parameter

Value

Rated voltage, VDC, not more

12-60; 120; 150

Rated DC current, A, resistive not more

5; 1.5; 1

Rated voltage, VAC, not more

250; 440

Rated AC current, A, resistive not more

5; 2.5

Number of automatic cycles, for DC not less than

30000

Number of automatic cycles, for AC not less than

100000

Operating temperature, °C

-40°C — 170°C

Tolerance of operating temperature, °C

±3

Reset temperature, lower than operating temperature, °C, by

10±3; 15±5; 20±5

Transient resistance, Ω, not more

0.05

Electric strength of insulation, V, not less than

1500

Insulation resistance, MΩ, not less than

Heating speed, K/min

minimum-0.1, maximum-1.0

Degrees of protection provided by enclosure

IP4X; IP65;

THERMOREX TK77DC

Application

Note

This thermostat is widely used in a broad range of temperature control applications for consumer, industrial and commercial products.

Besides its variety of standard configurations the thermostat can also be customized to the specific technical needs of the customer.

Parameter	Value
Rated voltage, VDC, not more	12-60; 120; 150
Rated DC current, A, resistive not more	5; 1.5; 1
Rated voltage, VAC, not more	250; 440
Rated AC current, A, resistive not more	5; 2.5
Number of automatic cycles, for DC not less than	30000
Number of automatic cycles, for AC not less than	100000
Operating temperature, °C	-40°C — 170°C
Tolerance of operating temperature, °C	±3
Reset temperature, lower than operating temperature, °C, by	10±3; 15±5; 20±5
Transient resistance, Ω, not more	0.05
Electric strength of insulation, V, not less than	1500
Insulation resistance, MΩ, not less than	50
Heating speed, K/min	minimum-0.1, maximum-1.0
Degrees of protection provided by enclosure	IP4X; IP65;
