Thermorex TK32

Home > Electronics > Thermostats

This is a temperature sensitive device, which is intended to keep a temperature below one particular value during normal operating conditions, automatically switching off the electrical circuit. This device is not self-resetting and operates with manual reset option. It prevents overheating in variety of consumer, industrial and commercial products. This temperature limiter is available only with contacts that open as the temperature increases. The contacts may be reset by manually pushing on the reset button after the device has cooled below the open temperature calibration. Besides its variety of standard configurations this limiter can also be customized to the specific technical needs of the customer, assuring maximum design flexibility and usage in broad range of temperature control applications.

Application	Note
This temperature limiter prevents overheating in a broad range of consumer, industrial and commercial products.	Besides its variety of standard configurations the limiter can also be customized to the specific technical needs of the customer.

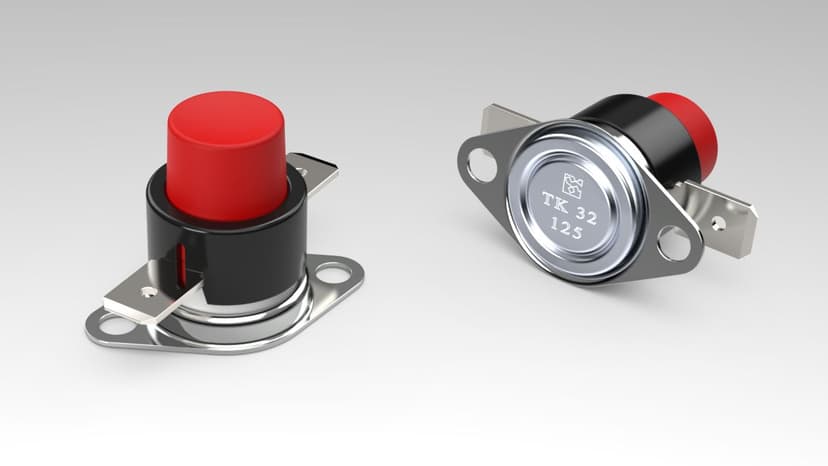

TK32-T01-MG01-B1CR

1 / 8

Download brochure

Request samples Request an offer

Parameter	Value
Rated voltage, V, not more	~250
Rated current, A, at power coeff. 0.95, not more	16
Rated current, A, at power coeff. 0.6, not more	10
Number of automatic cycles, at rated current 10 A and power coeff. 0.95, not less than	100000
Operating temperature, °C	30°C — 250°C
Tolerance of operating temperature, °C	±3;±6
Reset temperature, lower than operating temperature, °C, by	60±10; 100±10; 150±10
Transient resistance, Ω, not more	0.01; 0.05
Contact operating time, ms, not more	3
Electric strength of insulation, V, not less than	1500
Insulation resistance, MΩ, not less than	50
Heating speed, K/min	minimum-0.1, maximum-1.0
Degrees of protection provided by enclosure	IP4X; IP64
