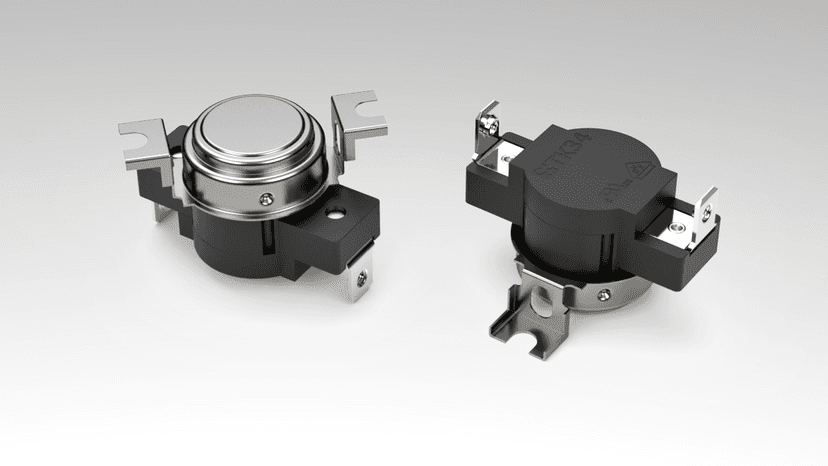

Thermorex TK34A

Bimetallic temperature sensitive switch or cyclic operation device with automatic reset control.

THERMOREX TK34A

This device operates with the automatic reset option. Further variations of this device are the TK34M with the manual reset option, and the TK34R with the resistance based internal heater. This thermostat can be used in high current applications (up to 45A). This thermostat can be built to either open or close its electrical contacts as the temperature increases. Once the temperature of the bimetal disc has returned to the specified reset temperature, the contacts will automatically return to their original state. Besides its variety of standard configurations the thermostat can also be customized to Your specific technical needs, assuring maximum design flexibility and usage in broad range of temperature control applications for consumer, industrial and commercial products.

ApplicationNote
This thermostat is widely used in a broad range of temperature control applications for consumer, industrial and commercial products.Besides its variety of standard configurations the thermostat can also be customized to the specific technical needs of the customer.
Download brochure
Request samplesRequest an offer
ParameterValue
Rated voltage, V, not more~250
Rated current, A, at power coeff. 0.95, not more25
Maximum current, A, at power coeff. 0,95, not more45
Number of automatic cycles, at rated current 25 A and power coeff. 0.95, not less than100000
Number of automatic cycles, at rated current 45 A and power coeff. 0.95, not less than6000
Operating temperature, °C-25°C — 120°C
Tolerance of operating temperature, °C±3; ±5
Reset temperature, lower than operating temperature on, °C not less than10
Transient resistance, Ω, not more0.05
Contact operating time, ms, not more3
Electric strength of insulation, V, not less than1500
Insulation resistance, MΩ, not less than50
Heating speed, K/minminimum-0.1, maximum-1.0
Degrees of protection provided by enclosureIP4X
