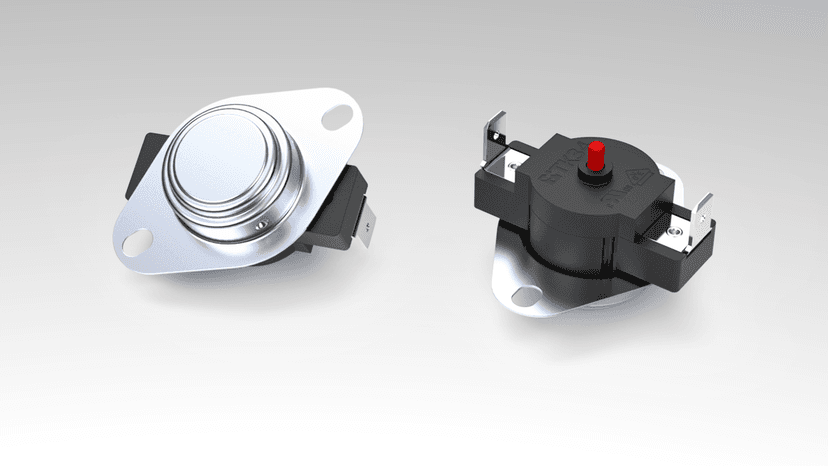

Thermorex TK34M

Bimetallic temperature sensitive switch or cyclic operation device with manual reset control.

THERMOREX TK34M

This device is operating with manual reset option. Further variations of this device are the TK34A with the automatic reset option, and TK34R with the resistance based internal heater. Besides its variety of standard configurations this thermostat can also be customized to Your specific technical needs, assuring maximum design flexibility and usage in broad range of temperature control applications for consumer, industrial and commercial products.

ApplicationNote
This thermostat is widely used in a broad range of temperature control applications for consumer, industrial and commercial products.Besides its variety of standard configurations the thermostat can also be customized to the specific technical needs of the customer.
Download brochure
Request samplesRequest an offer
ParameterValue
Rated voltage, V, not more~250
Rated current, A, at power coeff. 0.95, not more16
Maximum current, A, at power coeff. 0,95, not more40
Number of automatic cycles, at rated current 16 A and power coeff. 0.95, not less than1000
Number of automatic cycles, at rated current 40 A and power coeff. 0.95, not less than50
Operating temperature, °C50°C — 120°C
Tolerance of operating temperature, °C±3; ±5
Transient resistance, Ω, not more0.05
Contact operating time, ms, not more3
Electric strength of insulation, V, not less than1500
Insulation resistance, MΩ, not less than50
Heating speed, K/minminimum-0.1, maximum-1.0
Degrees of protection provided by enclosureIP4X
